OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.

OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.
OnLevel 6500 Top Mount Parapet Wall Profile - Anodised Alum.

Description

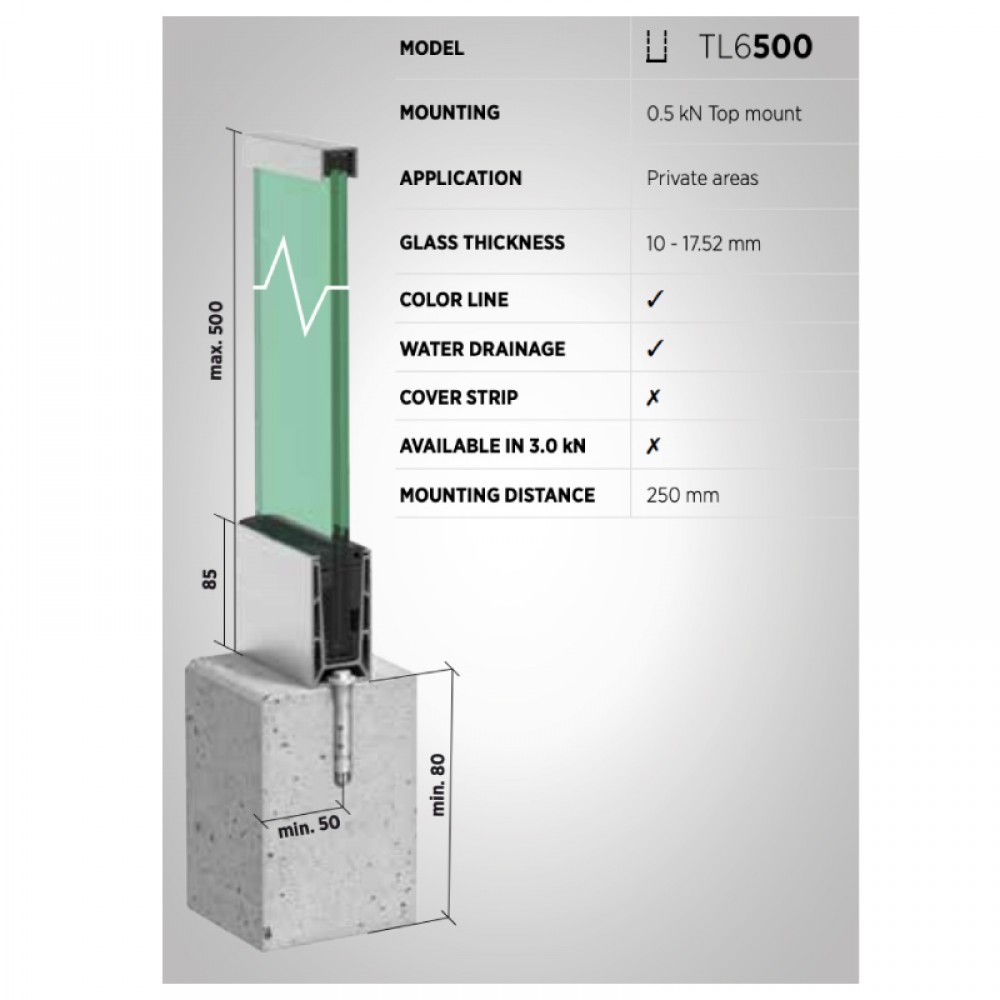

Ideal small and slim system for mounting on top of a parapet wall to increase the height of it up to 1100mm high and achieve suitable barrier loads of up to 0.74kn with the correct glass selection. Can also be used on top of full height walls to act as an additional windbreak without losing the views that a wall would result in.

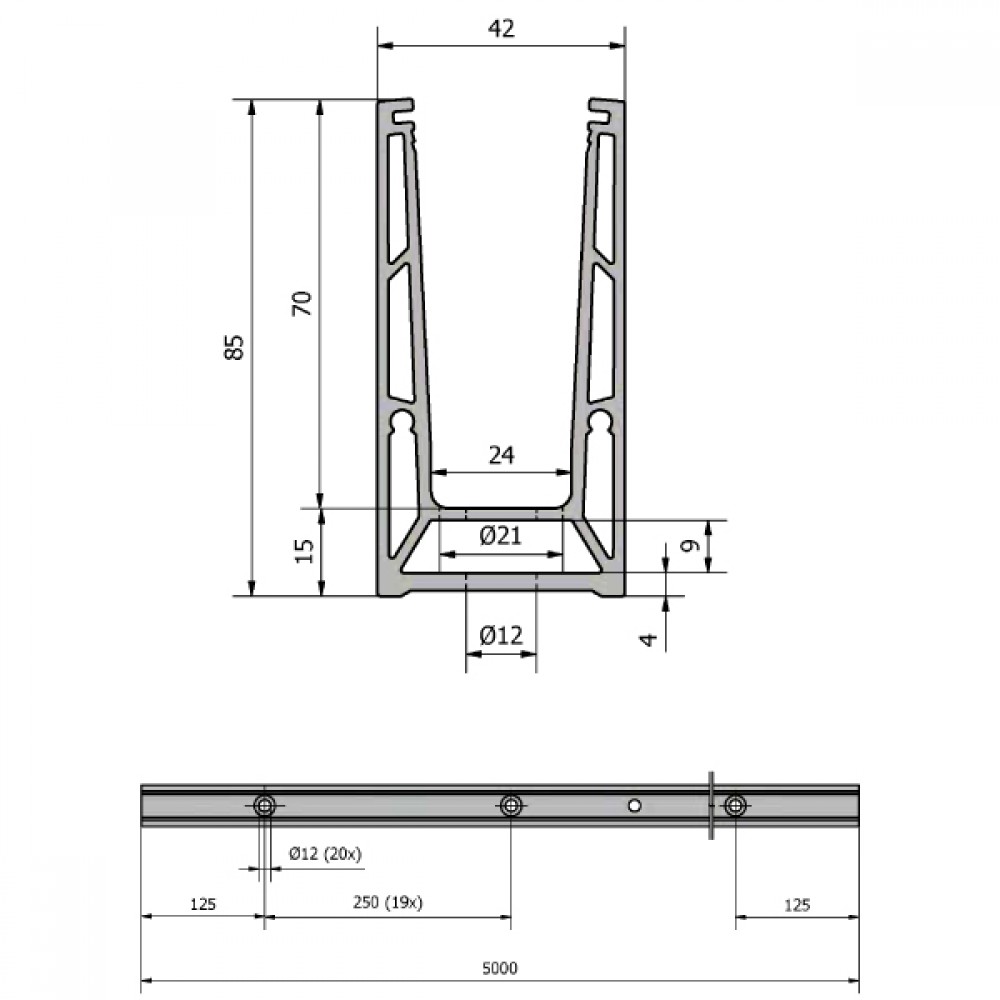

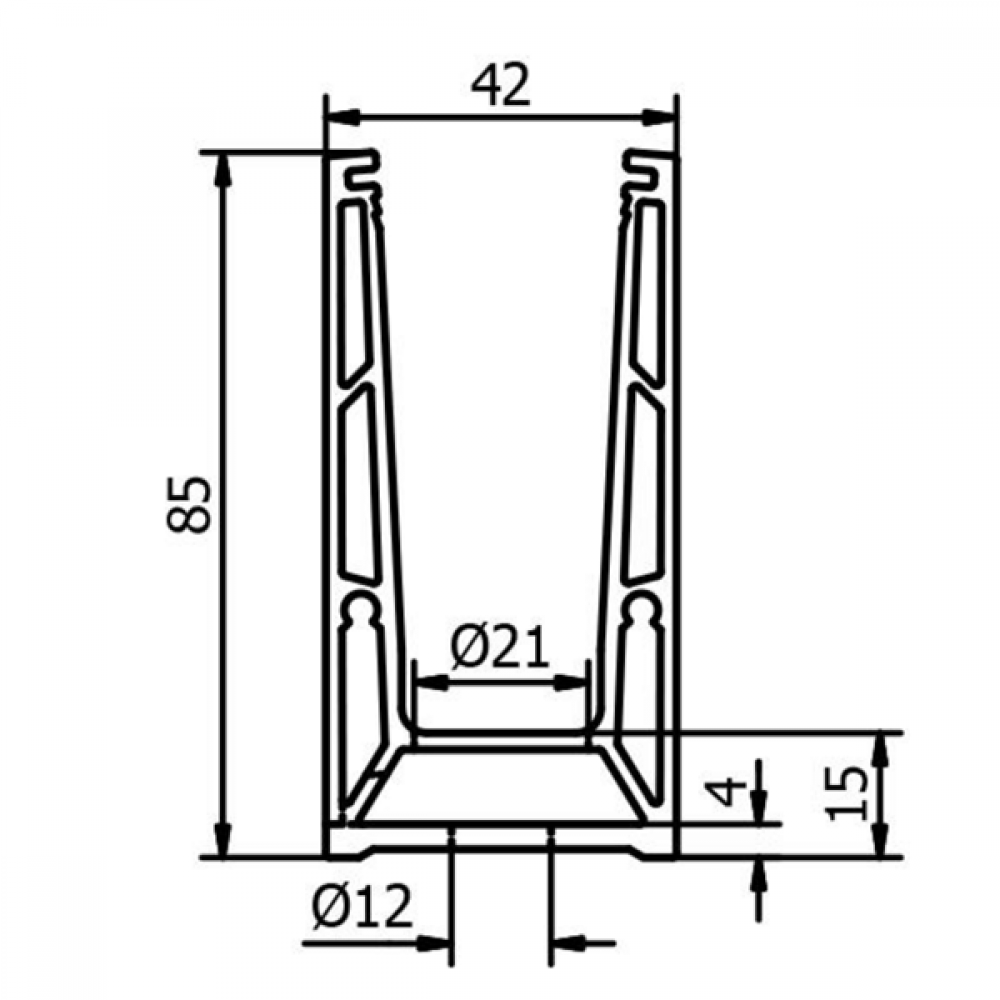

  • Only 85mm high and 42mm wide this profile can achieve a line load level of 0.74kN with the appropriate glass selection.

  • Suitable for 12.76 - 17.52mm thick glass

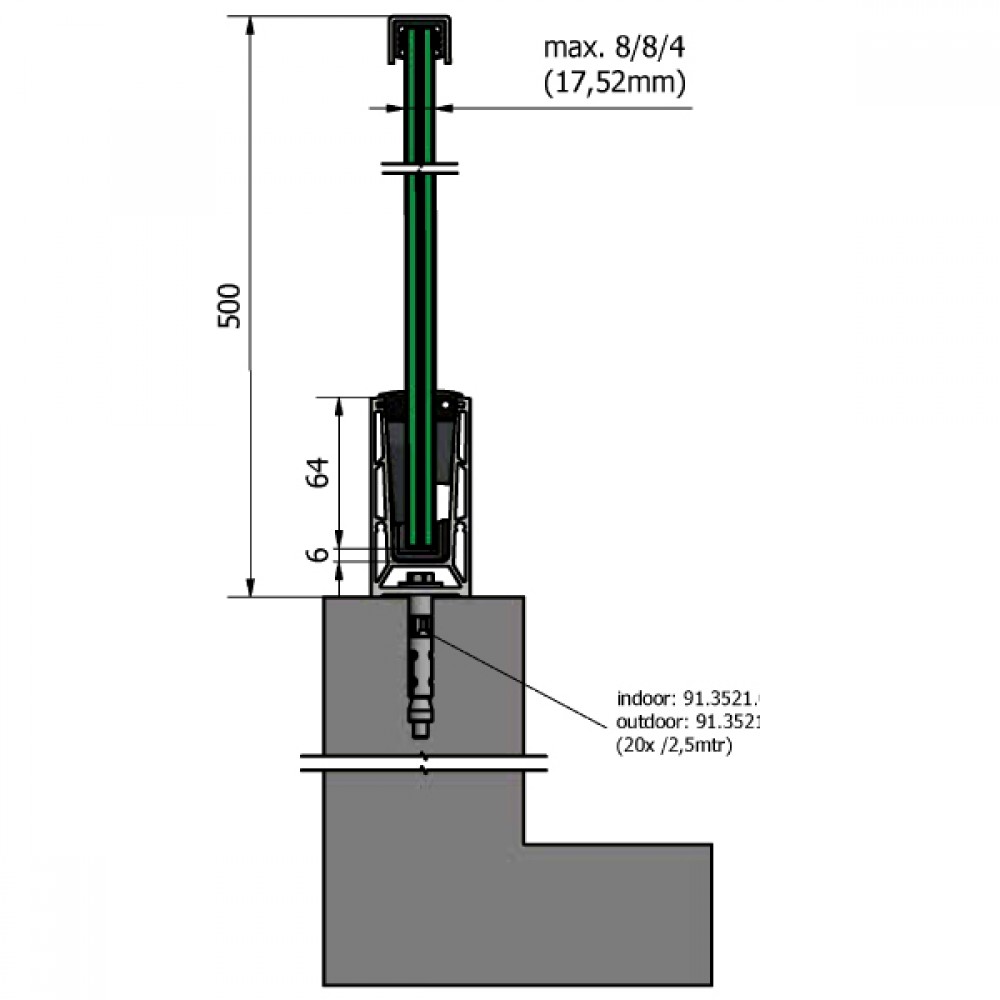

  • Maximum height: 500mm

  • Finished in an anodised aluminium finish.

  • Non-stock item. Shipped direct from Manufacturer. Delivery usually 3-7 days.
Product Details
Product Code K.ON.10.6500.005.11
Unit Of Sale 5 Mtr
£228.52 Ex. VAT
